AWS Basics

AWS Technical Essentials

AWS Intro

AWS Cloud Computing不仅仅有云服务器这么简单
AWS Regions: 常说的 us-west-2 (Oregon), us-east-1 (N Virginia) 就是region
- us (United States), ca (Canada), af (Africa), ap (Asia Pacific), eu (Europe), me (Middle East), sm (South America)
每一个region有多个availability zone (e.g. us-east-1a), 每一个availability zone有多个data centers，提供redundancy
Edge locations: 类似于CDN，类似于global cache。AWS CloudFront提供了使用edge location的服务
三种与AWS交互的方法：AWS Management Console, AWS CLI, AWS SDK

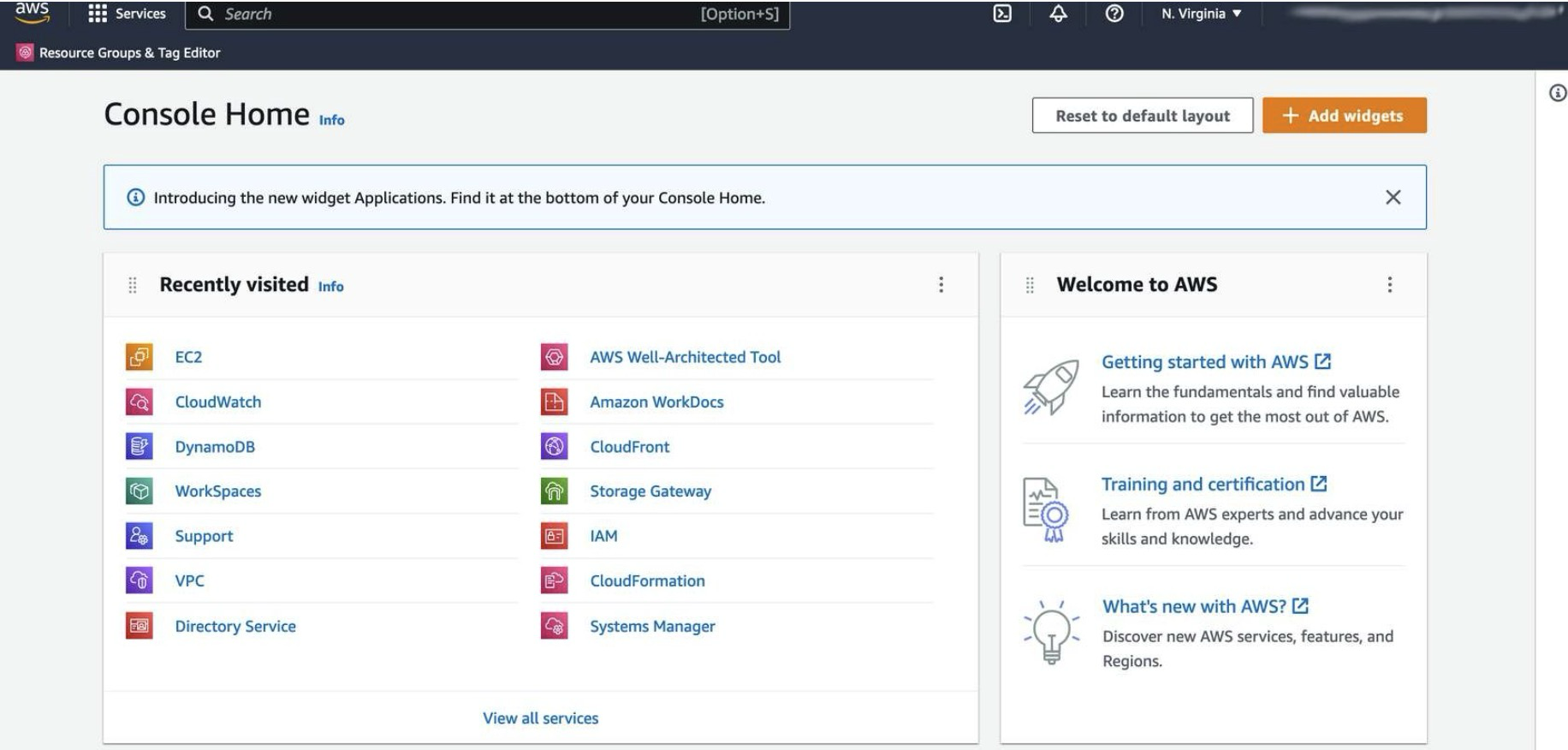

- AWS Management Console就是网页版

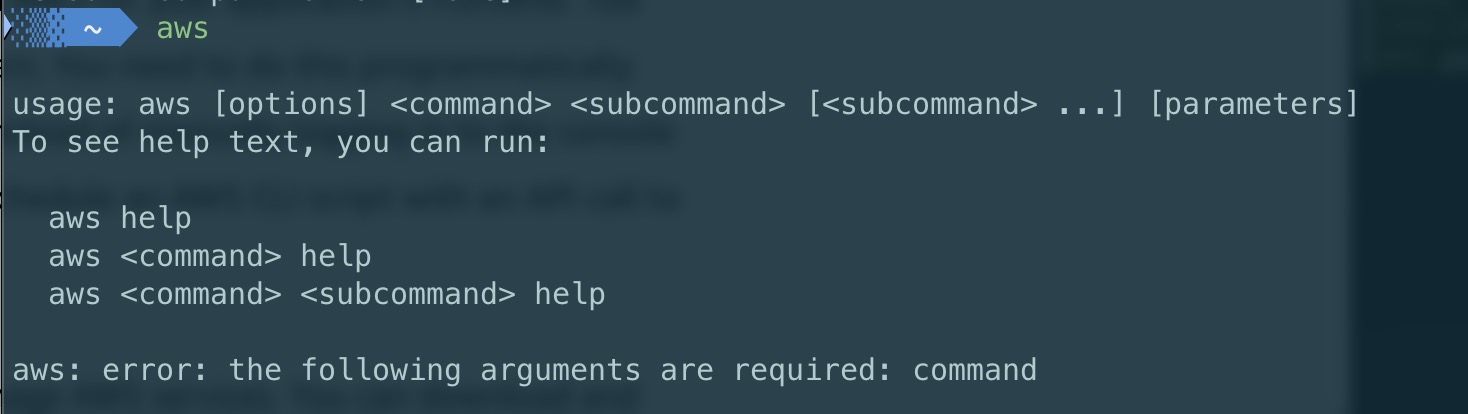

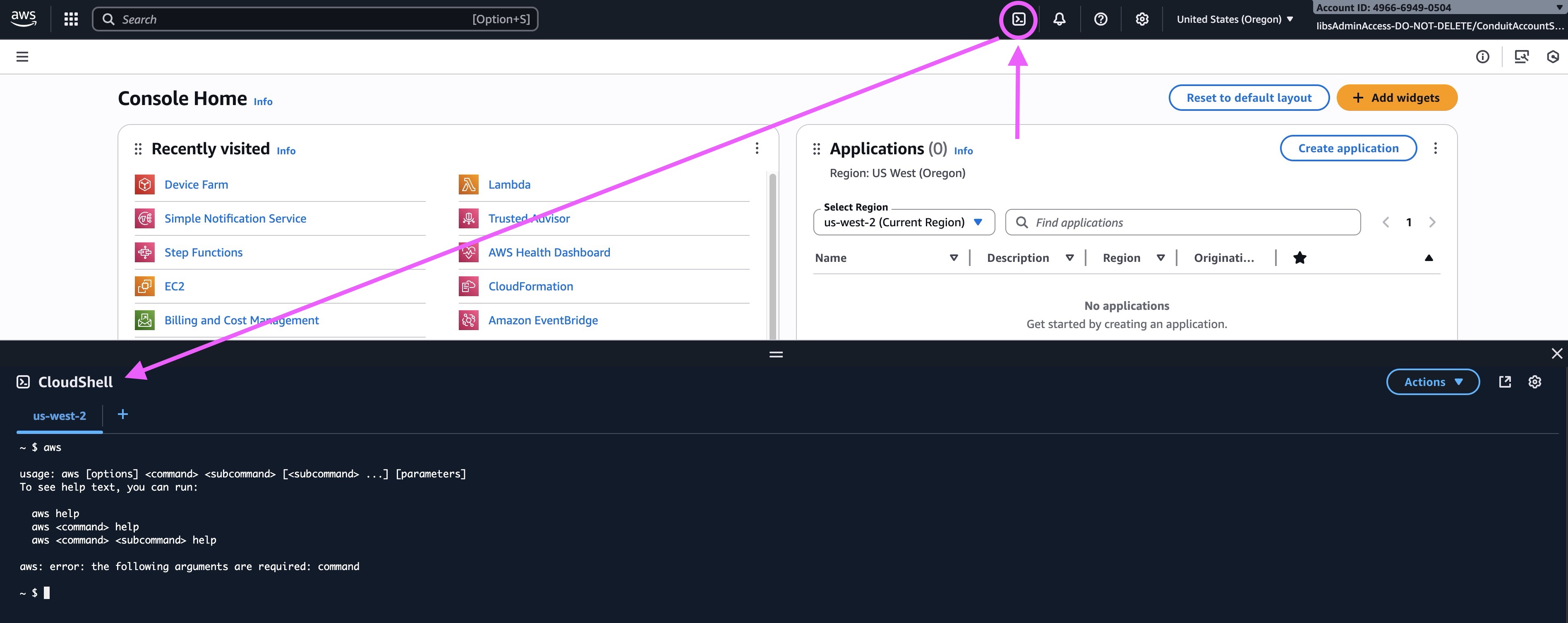

- AWS CLI就是在终端输入aws命令。aws web console上能完成的事情也可以使用终端命令或脚本完成。aws console右上角的终端图标是cloudshell，等同于aws cli
- AWS SDK: 支持多种语言(C++, Java, js, py, …) 可集成在不同语言的应用里
AWS Shared Responsibility Model
- customer is responsible for security in the cloud (IAM, data encryption, …)
- aws is responsible for security of the cloud (redundancy of data centers, …)

AWS IAM (Identity and Access Management)

使用邮箱和密码创建aws账号后，默认会得到root user，root user具有访问和操作aws资源的完整权利
root user有两种credentials，一种是邮箱+密码，另一种是Access key ID + Secret access key，后者会用于aws cli和aws api的鉴权

可以创建不同的IAM user，根据IAM policy指定其只拥有指定的aws资源的访问或操作权限

IAM policy的示例

{
	"Version": "2012-10-17",   // keep 2012-10-17, no need to change it
  "Statement": [{
    "Sid": "AllowS3Operations",  // brainstorm a name here
    "Effect": "Allow",   // Either Allow or Deny
    "Action": [
      "s3:*"
    ],
    "Resource": "*"
  }]
}

可以创建IAM group, IAM group内的所有IAM user会inherit group的权限。group可拥有多个user, 一个user可属于多个group, 但group不能从属于group

AWS Compute

AWS EC2 (Elastic Compute Cloud)
- 就是我们常说的云服务器，指定硬件资源和操作系统，能够ssh远程访问
- AMI (Amazon Machine Image): 指定软件镜像/操作系统，有官方镜像和社区镜像可选
- 需要指定instance type, 例如t3.2xlarge

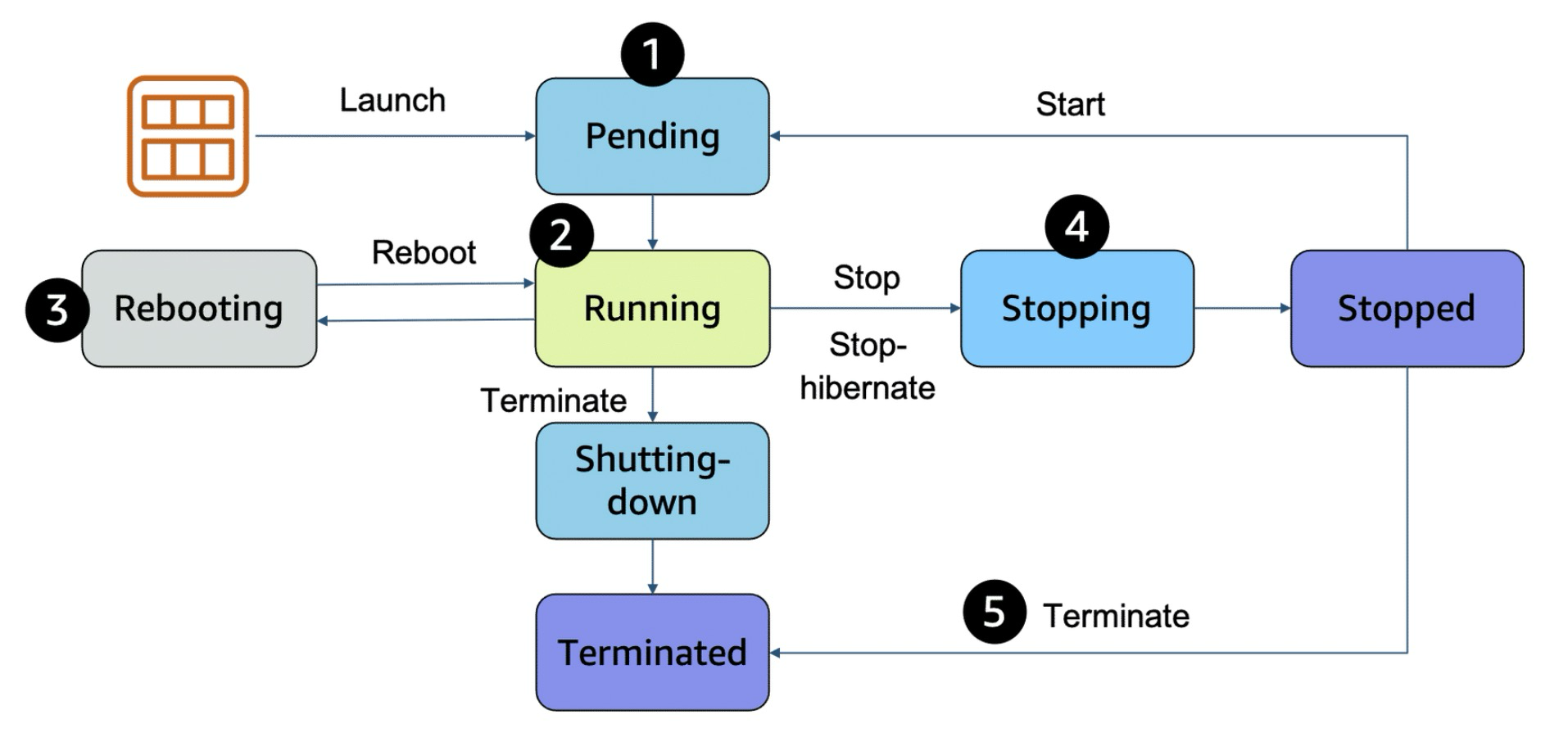

- EC2 instance states (lifecycle)
  - Stop指关机, Stop-hibernate类似于睡眠
  - 仅Running和Stopping状态会被收费
Container
- Container: code + dependencies 打包成一个容器，是一种轻量级虚拟机(不包含guest OS, 与宿主机操作系统共享内核)
- Amazon ECS (Elastic Container Service): 管理containers的服务. 用户在task中定义container，可使用AWS Fargate等serverless infrastructure运行这些tasks.
- Amazon EKS (Elastic Kubernetes Service):
  - Kubernetes/K8S: open-source platform for managing containerized workloads and services
  - EKS: 无需手动管理Kubernetes control plane, 直接运行Kubernetes
Serverless
- Serverless: 让用户专注于写业务逻辑的代码，无需管理硬件资源，如何部署，如何保证可用性，如何scale up等。serverless服务按照实际运行时长收费，pay as you go
- AWS Fargate: 针对containers的serverless compute engine.
- AWS Lambda: 上传代码，在发生指定events时自动调用执行，自动scale up，不需管理硬件计算资源

AWS Networking

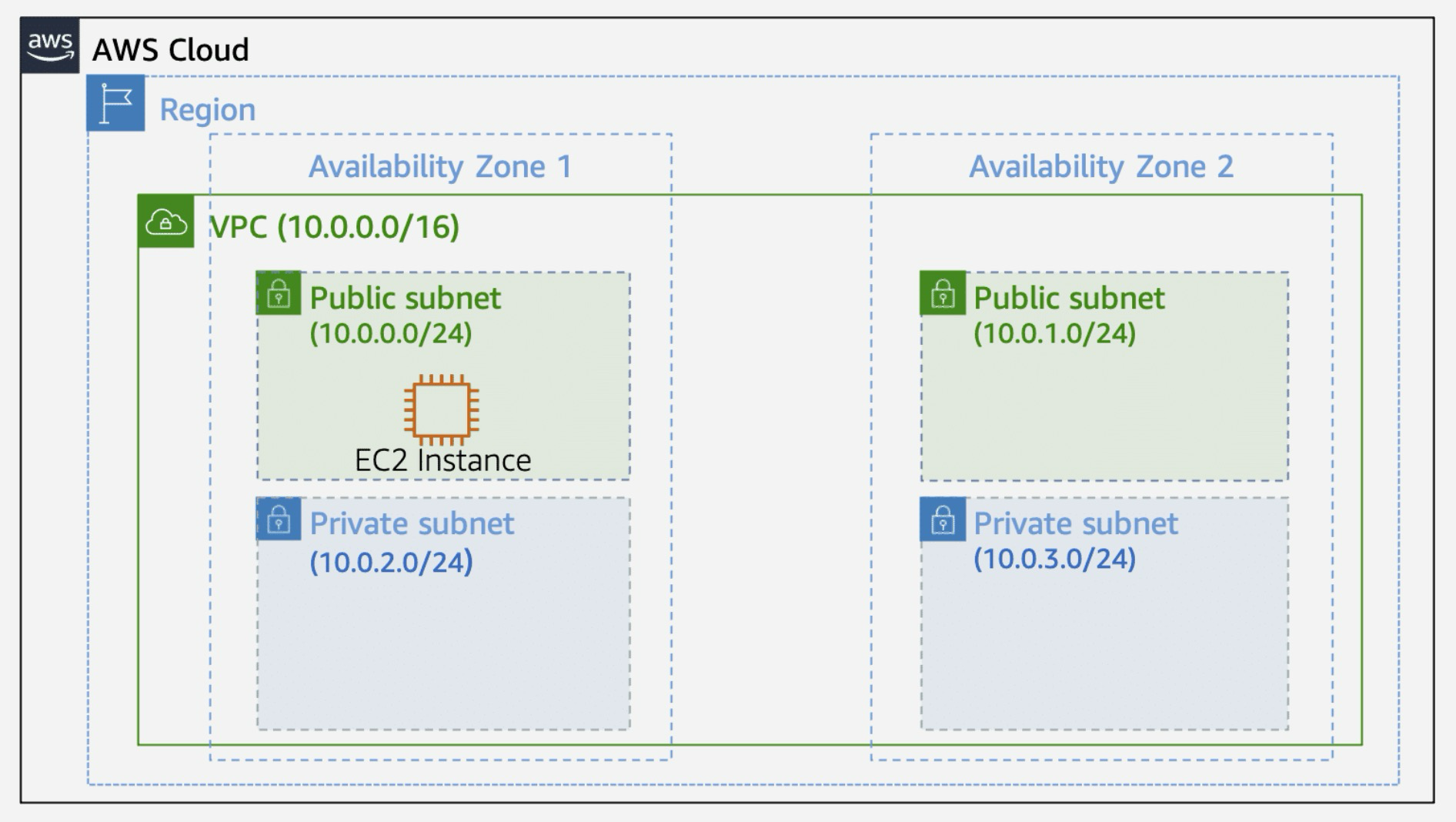

Amazon VPC (Virtual Private Cloud): isolated network in AWS cloud.
- 创建VPC时需要指定：Name, Region (VPC能够横跨Region内的所有availability zones), IP range (使用CIDR notation,例如10.0.0.0/16)
- 创建VPC后需要在VPC内创建subnets. 创建subnets需要指定VPC, AZ, IPv4 Range (subnets只能存在于一个availability zone内)
Gateway
- Internet Gateway: 给予VPC连接到外部互联网的能力
- Virtual Private Gateway: 将VPC通过互联网连接到另一个customer gateway (private network). 可使用VPN加密

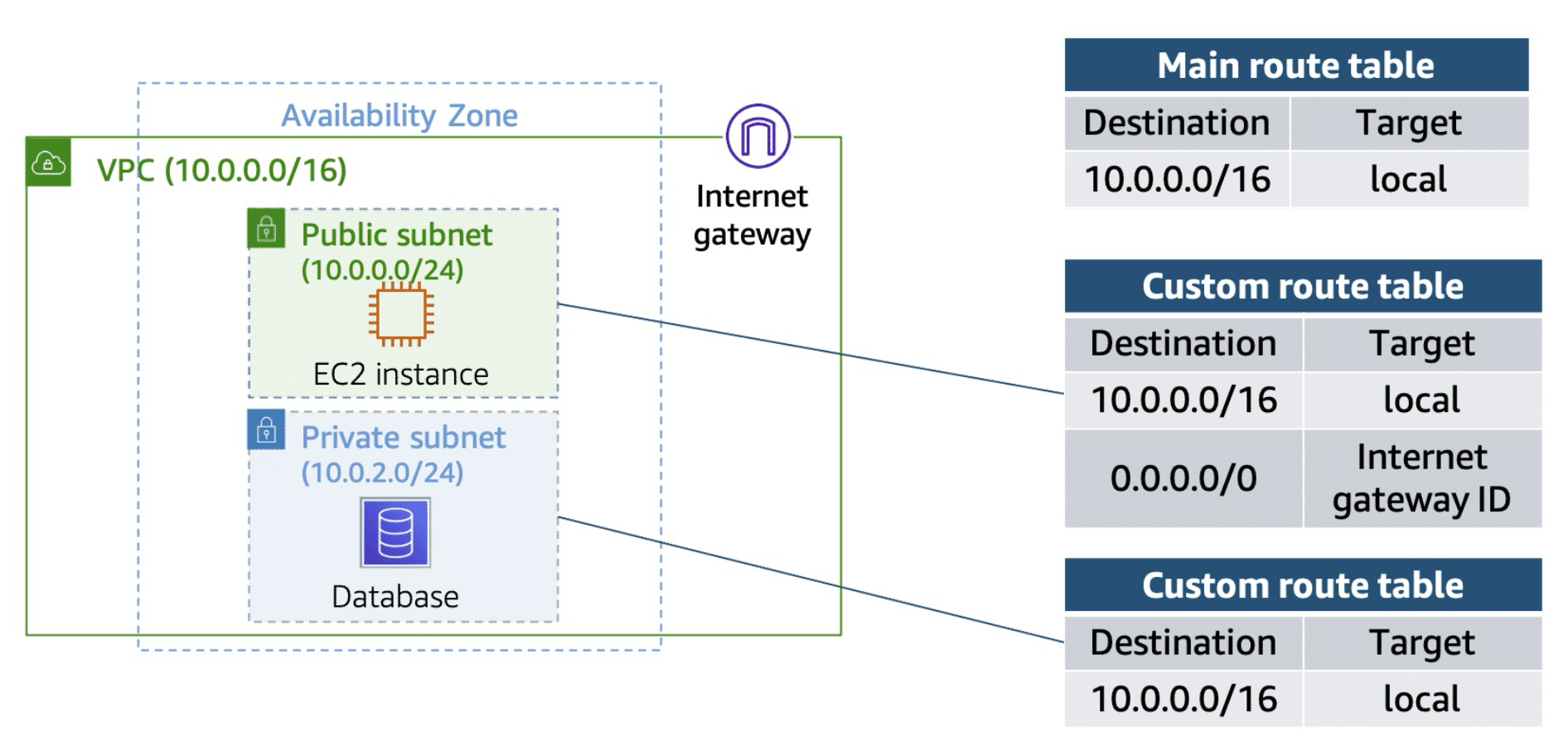

Amazon VPC Routing
- 创建VPC时, aws会创建main route table, 默认允许local network下所有subnets之间的互相通信
- 可以自定义route table, 决定subnets访问别的IP地址时会定向到哪里

AWS Storage

Storage types

File storage: 类似于windows和macOS的文件系统. 文件按照tree-like结构排列(文件夹的概念), 每个文件有metadata (文件名, 大小, 修改日期等)
- Amazon EFS (Elastic File System), Amazon Fsx
Block storage: 不同于file storage将文件看成整体, block storage中文件会被split成fixed-size chunks
- Amazon EC2 instance store: EC2实例上自带的硬盘
- Amazon EBS (Elastic Block Store): 可以attach / detach在EC2实例上的云硬盘
Object storage: 文件存储成objects, object整体就是一个单位. 如果修改1GB文件中的1个字节, 则需要更新整个object
- Amazon S3 (Simple Storage Service): standalone storage solution that isn’t tied to compute. S3是一种object storage, 但必须要先创建bucket之后才能将object存储在bucket中

AWS Database

Amazon RDS (Relational Database Service): managed database service. 用于创建relational databases. 支持大部分流行的RDBMS (Oracle, SQL Server, MySQL, PostgreSQL, MariaDB等)
- Amazon RDS由compute和storage构成
  - compute叫做DB instance, DB instance的底层是EC2 instance, 但是这些EC2由RDS console而非EC2 console进行管理
  - storage使用Amazon EBS
Amazon DynamoDB: fully managed NoSQL database
Amazon ElastiCache: fully managed, in-memory caching 内存数据库. 支持Redis和Memcached.
Amazon MemoryDB for Redis: 兼容Redis的内存数据库, 且有multi-AZ durability
Amazon DocumentDB (with MongoDB compatibility): fully managed document database. 用于存储富文本
Amazon Keyspaces (for Apache Cassandra)
Amazon Neptune: fully managed graph database. 适合highly connected data (relationship错综复杂的数据), 用于推荐系统, 诈骗检测, 思维导图等
Amazon Timestream: 一种serverless time series database service. 可用于记录随时间不断变化的数据, 例如股票变化, 温度变化等

AWS Monitoring

metrics: 监测的指标, 例如EC2 CPU utilization
metrics over time → Statistics
Amazon Cloudwatch: 许多aws服务会自动定期向cloudwatch发送日志. 可以查看cloudwatch logs.
- 可以创建alarms, 在指定的metrics超出告警阈值时发出alarm,
- Alarm有三种状态: In alarm, OK, insufficient data. 在状态转换时执行指定的actions (例如auto scaling, 或使用**Amazon SNS (Simple Notificaton Service)**向指定邮箱发送警告)
ELB (Elastic Load Balancing): Application LB (http/https), Network LB (tcp/udp/tls), Gateway LB (IP)
- ALB的组成部分: listener (e.g. listen to port 443), target group, rule (可指定哪些流量映射到哪些target group)
